FAT — Fan Adapter Termination
FAT — Fan Adapter Termination

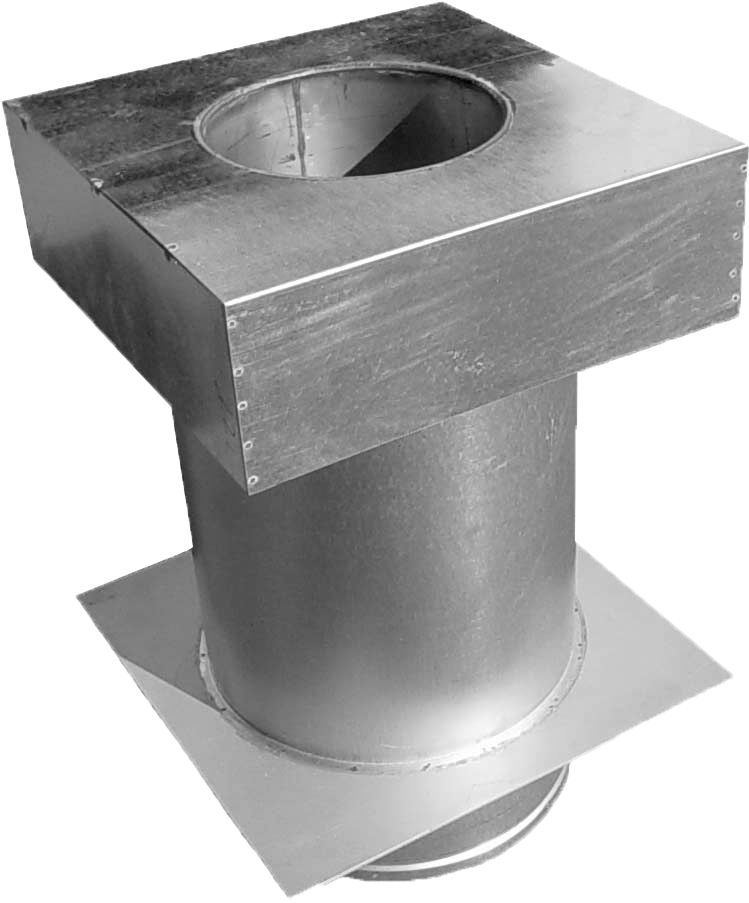

- Provides provides a surface for mounting and installing an upblast discharge fan
- Z-Clear Materials Available: 304/Alum, 316/Alum, 304/304, 316/316
| A" Pipe I.D | B" Pipe O.D | C" Roof Plate | D" Curb Size | |
|---|---|---|---|---|
| 8IVSI304-FAT195Z3 | 8 | 14 | 20 | 19.5 |
| 8IVSI304-FAT220Z3 | 8 | 14 | 20 | 22 |
| 10IVSI304-FAT195Z3 | 10 | 16 | 22 | 19.5 |
| 10IVSI304-FAT230Z3 | 10 | 16 | 22 | 23 |
| 12IVSI304-FAT180Z3 | 12 | 18 | 24 | 18 |
| 12IVSI304-FAT195Z3 | 12 | 18 | 24 | 19.5 |
| 12IVSI304-FAT220Z3 | 12 | 18 | 24 | 22 |
| 12IVSI304-FAT230Z3 | 12 | 18 | 24 | 23 |
| 14IVSI304-FAT220Z3 | 14 | 20 | 26 | 22 |
| 14IVSI304-FAT230Z3 | 14 | 20 | 26 | 23 |
| 14IVSI304-FAT265Z3 | 14 | 20 | 26 | 26.5 |
| 16IVSI304-FAT230Z3 | 16 | 22 | 28 | 23 |
| 16IVSI304-FAT265Z3 | 16 | 22 | 28 | 26.5 |
| 16IVSI304-FAT280Z3 | 16 | 22 | 28 | 28 |
| 18IVSI304-FAT265Z3 | 18 | 24 | 30 | 26.5 |
| 18IVSI304-FAT280Z3 | 18 | 24 | 30 | 28 |
| 20IVSI304-FAT280Z3 | 20 | 26 | 32 | 28 |
| 08IVSI304-FAT195Z4 | 8 | 14 | 20 | 19.5 |
| 08IVSI304-FAT220Z4 | 8 | 14 | 20 | 22 |
| 10IVSI304-FAT195Z4 | 10 | 16 | 22 | 19.5 |
| 10IVSI304-FAT230Z4 | 10 | 16 | 22 | 23 |
| 12IVSI304-FAT220Z4 | 12 | 18 | 24 | 22 |
| 12IVSI304-FAT230Z4 | 12 | 18 | 24 | 23 |
| 14IVSI304-FAT230Z4 | 14 | 20 | 26 | 23 |
| 14IVSI304-FAT265Z4 | 14 | 20 | 26 | 26.5 |
| 16IVSI304-FAT265Z4 | 16 | 22 | 28 | 26.5 |
| 16IVSI304-FAT280Z4 | 16 | 22 | 28 | 28 |
| 18IVSI304-FAT280Z4 | 18 | 24 | 30 | 28 |
